Smart dysku

roki22 · 25 Wrzesień 2019 14:09

Witam serdecznie otóż mój dysk w laptopie wymieniłem dysk hdd i kupiłem na allegro używany ale z małym przebiegiem i bym prosił smart dysku czy jest sprawny

wartość raw 1byte

CrystalDiskInfo 8.3.0 © 2008-2019 hiyohiyo
Crystal Dew World: https://crystalmark.info/

OS : Windows 7 Ultimate SP1 [6.1 Build 7601] (x64)

Date : 2019/09/25 16:08:03

– Controller Map ----------------------------------------------------------

ATA Channel 0 (0) [ATA]
- ST500LM000-SSHD-8GB ATA Device
ATA Channel 1 (1) [ATA]
- Optiarc DVD RW AD-7710H ATA Device

ATA Channel 0 (0) [ATA]
ATA Channel 1 (1) [ATA]

Intel® 6 Series/C200 Series Chipset Family 4 port Serial ATA Storage Controller - 1C01 [ATA]
- ATA Channel 0 (0)
- ATA Channel 1 (1)

Ricoh PCIe SDXC/MMC Host Controller [ATA]

Intel® 6 Series/C200 Series Chipset Family 2 port Serial ATA Storage Controller - 1C09 [ATA]
- ATA Channel 0 (0)
- ATA Channel 1 (1)

– Disk List ---------------------------------------------------------------
(1) ST500LM000-SSHD-8GB : 500,1 GB [0/0/0, pd1] - st

(1) ST500LM000-SSHD-8GB

       Model : ST500LM000-SSHD-8GB
    Firmware : LVD6

Serial Number : W766VD8W
Disk Size : 500,1 GB (8,4/137,4/500,1/500,1)
Buffer Size : Nieznany
Queue Depth : 32
# of Sectors : 976773168
Rotation Rate : 5400 RPM
Interface : Serial ATA
Major Version : ACS-2
Minor Version : ACS-3 Revision 3b
Transfer Mode : SATA/600 | SATA/600
Power On Hours : 5 godzin
Power On Count : 32 razy
Temperature : 37 C (98 F)
Health Status : dobry
Features : S.M.A.R.T., APM, 48bit LBA, NCQ
APM Level : 8080h [ON]
AAM Level : ----
Drive Letter : C: E:

– S.M.A.R.T. --------------------------------------------------------------
ID Cur Wor Thr RawValues(6) Attribute Name
01 117 100 __6 0000078339B8 Liczba błędów odczytu
03 _99 _98 __0 000000000000 Czas do “rozkręcenia” talerzy dysku
04 100 100 _20 000000000052 Ilość cykli start/stop
05 100 100 _10 000000000000 Ilość realokowanych sektorów
07 100 253 _30 000000095616 Liczba błędów pozycjonowania
09 100 100 __0 000000000005 Czas pracy dysku
0A 100 100 _97 000000000000 Liczba prób uruchomienia osi napędowej dysku
0C 100 100 _20 000000000020 Ilość włączeń dysku
B8 100 100 _99 000000000000 Błędy “End-to-End”
BB 100 100 __0 000000000000 Zgłoszone nienaprawialne błędy
BC 100 100 __0 000000000000 Limit czasu dla komendy
BD 100 100 __0 000000000000 High Fly Writes
BE _63 _59 _45 000025140025 Temperatura “przepływu powietrza”
BF 100 100 __0 000000000000 Częstotliwość występowania błędów spowodowanych wstrząsem
C0 100 100 __0 000000000002 Ilość wyłączeń spowodowanych odcięciem zasilania
C1 100 100 __0 0000000000A5 Ilość cykli obciążenia/odciążenia
C2 _37 _41 __0 001200000025 Temperatura dysku
C5 100 100 __0 000000000000 Liczba sektorów niestabilnych (oczekujących na remapowanie)
C6 100 100 __0 000000000000 Ilość nie naprawionych sektorów
C7 200 200 __0 000000000000 Liczba błędów CRC podczas pracy w trybie Ultra DMA
FE 100 100 __0 000000000000 Ochrona przed upadkiem

– IDENTIFY_DEVICE ---------------------------------------------------------
0 1 2 3 4 5 6 7 8 9
000: 0C5A 3FFF C837 0010 0000 0000 003F 0000 0000 0000
010: 2020 2020 2020 2020 2020 2020 5737 3636 5644 3857
020: 0000 0000 0004 4C56 4436 2020 2020 5354 3530 304C
030: 4D30 3030 2D53 5348 442D 3847 4220 2020 2020 2020
040: 2020 2020 2020 2020 2020 2020 2020 8010 4000 2F00
050: 4000 0200 0200 0007 3FFF 0010 003F FC10 00FB 0110
060: FFFF 0FFF 0000 0007 0003 0078 0078 0078 0078 0000
070: 0000 0000 0000 0000 0000 001F 8F0E 0006 004C 0048
080: 03F0 001F 346B 7D69 6163 3469 BC49 6163 207F 002E
090: 002E 8080 FFFE 0000 FE00 0000 0000 0000 0000 0000
100: 6030 3A38 0000 0000 0000 0000 6003 0000 5000 C500
110: 9075 5916 0000 0000 0000 0000 0000 0000 0000 401E
120: 401C 0000 0000 0000 0000 0000 0000 0000 0029 6030
130: 3A38 6030 3A38 2020 0002 0140 0108 5000 3C06 3C0A
140: 0000 003C 0000 0008 0000 0000 05FF 0280 0000 0000
150: 0008 0000 0000 0000 0000 0001 0000 0000 7200 8006
160: 0000 0000 0000 0000 0000 0000 0000 0000 0003 0000
170: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
180: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
190: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
200: 0000 0000 0000 0000 0000 0000 10B1 0000 0000 4000
210: 0000 0000 0000 0000 0000 0000 0000 1518 0000 0000
220: 0000 0000 107F 0000 0000 0000 0000 0000 0000 0000
230: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
240: 0000 0000 0000 0007 0000 0000 0000 0000 0000 0000
250: 0000 0000 0000 0000 0000 17A5

– SMART_READ_DATA ---------------------------------------------------------
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
000: 0A 00 01 0F 00 75 64 B8 39 83 07 00 00 00 03 03
010: 00 63 62 00 00 00 00 00 00 00 04 32 00 64 64 52
020: 00 00 00 00 00 00 05 33 00 64 64 00 00 00 00 00
030: 00 00 07 0F 00 64 FD 16 56 09 00 00 00 00 09 32
040: 00 64 64 05 00 00 00 00 00 00 0A 13 00 64 64 00
050: 00 00 00 00 00 00 0C 32 00 64 64 20 00 00 00 00
060: 00 00 B8 32 00 64 64 00 00 00 00 00 00 00 BB 32
070: 00 64 64 00 00 00 00 00 00 00 BC 32 00 64 64 00
080: 00 00 00 00 00 00 BD 3A 00 64 64 00 00 00 00 00
090: 00 00 BE 22 00 3F 3B 25 00 14 25 00 00 00 BF 32
0A0: 00 64 64 00 00 00 00 00 00 00 C0 32 00 64 64 02
0B0: 00 00 00 00 00 00 C1 32 00 64 64 A5 00 00 00 00
0C0: 00 00 C2 22 00 25 29 25 00 00 00 12 00 00 C5 12
0D0: 00 64 64 00 00 00 00 00 00 00 C6 10 00 64 64 00
0E0: 00 00 00 00 00 00 C7 3E 00 C8 C8 00 00 00 00 00
0F0: 00 00 FE 32 00 64 64 00 00 00 00 00 00 00 00 00
100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
160: 00 00 00 00 00 00 00 00 00 00 00 00 8B 00 00 73
170: 03 00 01 00 01 60 02 00 00 00 00 00 00 00 00 00
180: 00 00 00 00 EE 01 00 00 04 02 01 01 01 01 01 02
190: 01 00 00 00 00 00 00 00 00 01 00 00 00 00 00 00
1A0: 00 00 00 00 00 00 00 00 BC 8B A4 C1 04 00 00 00
1B0: 00 00 00 00 01 00 0B 00 12 64 2B 10 00 00 00 00
1C0: C5 7D 11 08 02 00 00 00 00 00 00 00 00 00 00 00
1D0: 00 00 00 00 00 00 00 00 ED 23 00 00 01 00 00 00
1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1F0: 00 00 00 00 00 00 00 00 00 00 14 15 06 00 00 6F

– SMART_READ_THRESHOLD ----------------------------------------------------
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
000: 01 00 01 06 00 00 00 00 00 00 00 00 00 00 03 00
010: 00 00 00 00 00 00 00 00 00 00 04 14 00 00 00 00
020: 00 00 00 00 00 00 05 0A 00 00 00 00 00 00 00 00
030: 00 00 07 1E 00 00 00 00 00 00 00 00 00 00 09 00
040: 00 00 00 00 00 00 00 00 00 00 0A 61 00 00 00 00
050: 00 00 00 00 00 00 0C 14 00 00 00 00 00 00 00 00
060: 00 00 B8 63 00 00 00 00 00 00 00 00 00 00 BB 00
070: 00 00 00 00 00 00 00 00 00 00 BC 00 00 00 00 00
080: 00 00 00 00 00 00 BD 00 00 00 00 00 00 00 00 00
090: 00 00 BE 2D 00 00 00 00 00 00 00 00 00 00 BF 00
0A0: 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00
0B0: 00 00 00 00 00 00 C1 00 00 00 00 00 00 00 00 00
0C0: 00 00 C2 00 00 00 00 00 00 00 00 00 00 00 C5 00
0D0: 00 00 00 00 00 00 00 00 00 00 C6 00 00 00 00 00
0E0: 00 00 00 00 00 00 C7 00 00 00 00 00 00 00 00 00
0F0: 00 00 FE 00 00 00 00 00 00 00 00 00 00 00 00 00
100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 89

anon7248146 · 25 Wrzesień 2019 14:15

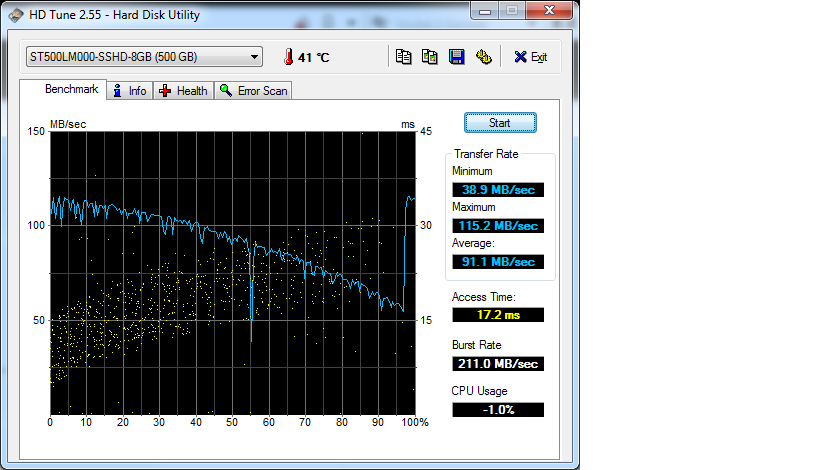

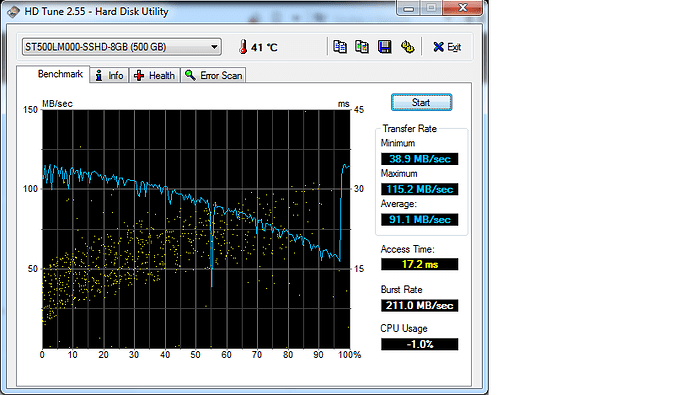

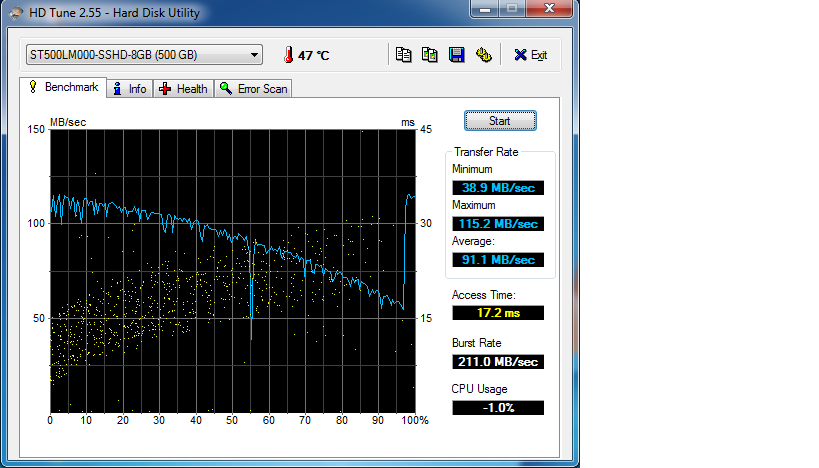

Możesz dac screeny health+ predkosci?

roki22 · 25 Wrzesień 2019 14:26

roki22 · 25 Wrzesień 2019 14:27

dysk kupiony z allegro mam paragon mogę oddać

roki22 · 25 Wrzesień 2019 14:35

HD Tune: ST500LM000-SSHD-8GB Health

ID Current Worst ThresholdData Status
(01) Raw Read Error Rate 118 100 6 176795192 Ok
(03) Spin Up Time 99 98 0 0 Ok
(04) Start/Stop Count 100 100 20 82 Ok
(05) Reallocated Sector Count 100 100 10 0 Ok
(07) Seek Error Rate 100 253 30 630805 Ok
(09) Power On Hours Count 100 100 0 6 Ok
(0A) Spin Retry Count 100 100 97 0 Ok
(0C) Power Cycle Count 100 100 20 32 Ok
(B8) (unknown attribute) 100 100 99 0 Ok
(BB) (unknown attribute) 100 100 0 0 Ok
(BC) (unknown attribute) 100 100 0 0 Ok
(BD) (unknown attribute) 100 100 0 0 Ok
(BE) Airflow Temperature 61 59 45 689176615 Ok
(BF) G-sense Error Rate 100 100 0 0 Ok
(C0) Power Off Retract Count 100 100 0 2 Ok
(C1) Load Cycle Count 100 100 0 167 Ok
(C2) Temperature 39 41 0 39 Ok
(C5) Current Pending Sector 100 100 0 0 Ok
(C6) Offline Uncorrectable 100 100 0 0 Ok
(C7) Ultra DMA CRC Error Count 200 200 0 0 Ok
(FE) (unknown attribute) 100 100 0 0 Ok

Power On Time : 6
Health Status : Ok

tu jest programem hd tune

roki22 · 25 Wrzesień 2019 14:36

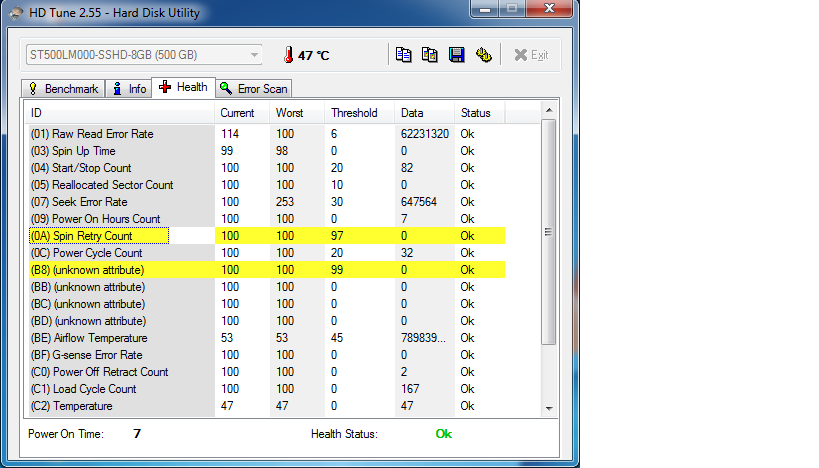

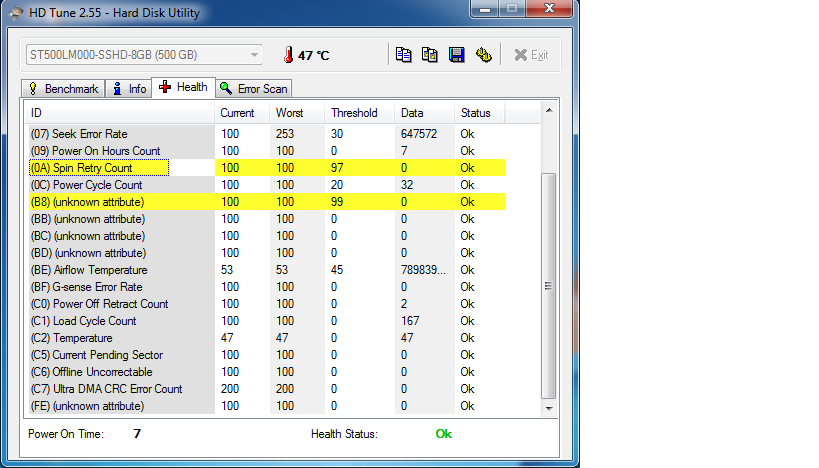

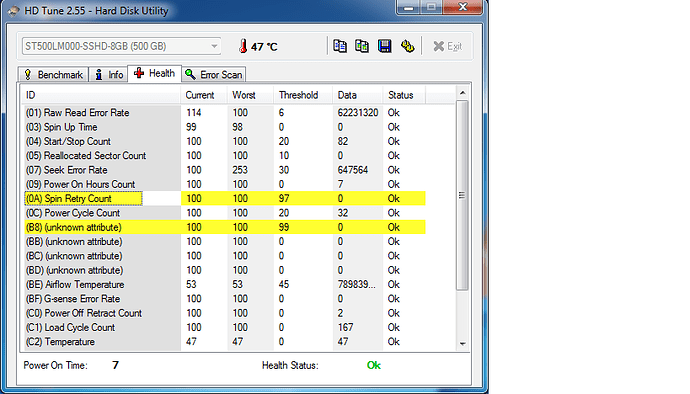

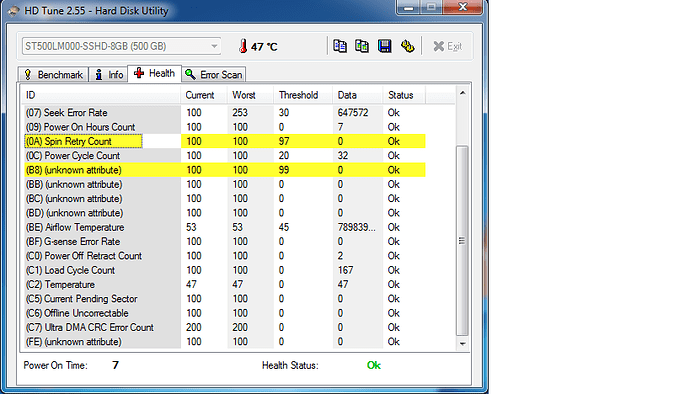

0a i B8 mam na żółto

blumberplumber · 25 Wrzesień 2019 14:37

Błędy, błędy i jeszcze raz błędy,! Ortografia się kłania.

roki22 · 25 Wrzesień 2019 15:01

i mogą być te testy szybkości i smart. sprawny? proszę o pomoc

roki22 · 25 Wrzesień 2019 15:36

witam przepraszam źle przeczytałem daje screny

anon42271672 · 25 Wrzesień 2019 15:43

Wygląda na sprawny.

roki22 · 25 Wrzesień 2019 15:49

ok dziękuje za informacje to co oznacza te żółte

Dimatheus · 26 Wrzesień 2019 11:30

Hej,

Generalnie pojawiają się pierwsze oznaki zużycia, ale dysk nadal jest dobrym stanie.

Atrybut 0A:

Liczba prób rozpędzenia talerzy dysku. Atrybut ten przechowuje całkowitą liczbę prób rozpoczęcia rozpędzenia talerzy dysku (do osiągnięcia pełnej prędkości obrotowej). Wzrost wartości atrybutu oznacza problemy z podsystemem mechanicznym dysku.

Atrybut B8:

Atrybut ten oznacza, że po przesłaniu przez bufor danych, ich parzystość nie jest zgodna (pomiędzy kontrolerem a twardym dyskiem).

Na razie nie ma się czym stresować.

Pozdrawiam,
Dimatheus
